TG-201

TG-201

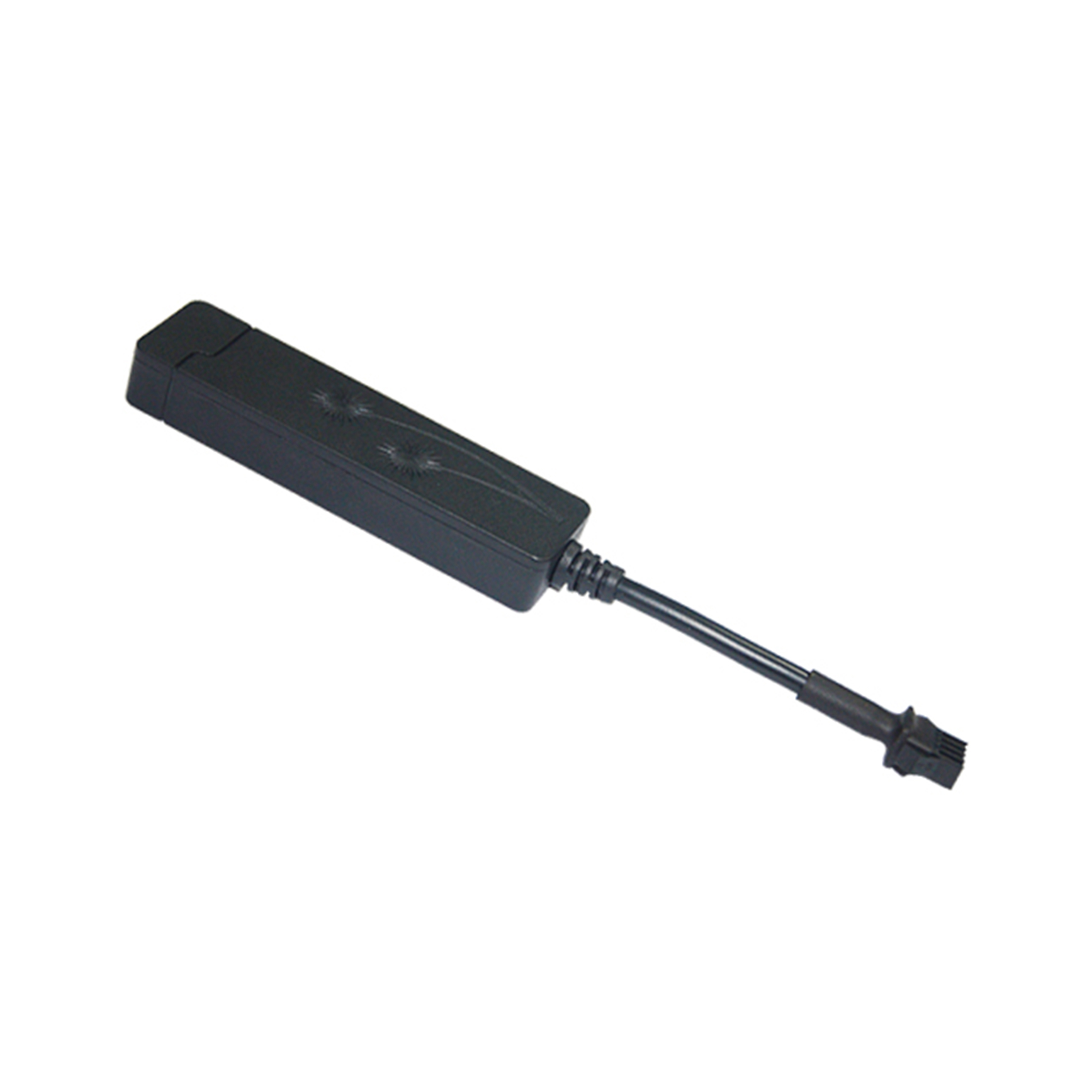

Vehicle location monitoring terminal | GPS tracker
Product Name: vehicle positioning and monitoring terminal
Product model: TG-201
Product specification: L83mm*W23mm*H12.5mm
Applicable areas: financial credit, car rental, enterprises and institutions, insurance claims and so on
Product description
Product features
--------------------------------------------------------------------------------------------------------------------------------------------------
Product function
--------------------------------------------------------------------------------------------------------------------------------------------------
1、Tracking and positioning
According to the setting time interval, the time tracking can return the location information, such as latitude and longitude, when the moving distance is greater than 50 meters compared with the previous positioning information packet.
2、vehicle status detection
In the ignition / flameout state, the ACC ON/OFF state is contained in the packets that are uploaded each time.
When the vehicle detects the vehicle voltage is low to a certain value (less than 5V), it will report the power off reminder.
Overspeed alarm platform set the maximum speed limit value, when the GPS speed is greater than the set value, then report overspeed alarm reminder.
Oil detection support platform and SMS interruption of oil and electricity, oil through electricity function.
3、Other functions
Blind spot transfer function terminal positioning and not online, storage data, up to 600. There is a normal signal upload on the line.
EPO auxiliary positioning function terminal supports EPO auxiliary positioning function, and enhances positioning effect.
When the change of the direction angle of the equipment is greater than a certain angle, a position data is uploaded immediately, and the trajectory is optimized.
Remote upgrade housekeeper remote upgrade
4、 low power consumption
Static mode 3D three axis accelerometer real-time sensing vehicle vibration state, power on motion mode, when the host remains 5 minutes after the rest mode, turn off the GPS module, there is vibration that enters the movement mode.
Specification parameter
--------------------------------------------------------------------------------------------------------------------------------------------------
No. |
project |
Specification parameter |
1 |
working voltage |
DC 9~36V |
2 |
Working current |
25mA@12V(Quiescent current10mA) |
3 |
Specification size |
L83mm*W23mm*H12.5mm |
4 |
Positioning mode |
GPS/LBS |
5 |
positioning error |
<10m(this data for reference, positioning error and the area of the vehicle terrain and time and other factors) |
6 |
Communication network |
GPRS |
7 |
Communication mode |
TCP/IP |
8 |
Operating temperature range |
-25℃ ~ +75℃ |
9 |
Storage temperature range |
-40℃ ~ +85℃ |
10 |
weight |
27g |
11 |
Backup battery operating time |
0.5h |
