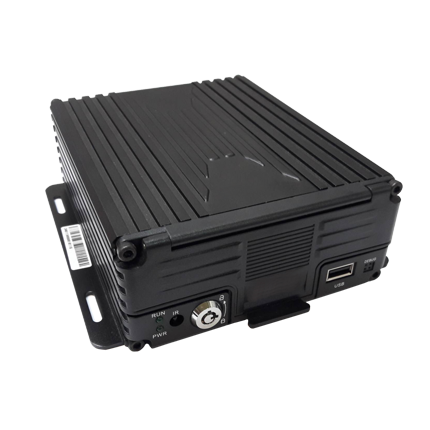

TG-9HD
TG-9HD
Product Name: 4CH HDD AHD video recorder
Product model: TG-9HD
·The proprietary HDD bad track detection technology not only guarantees video continuity.
·Built-in super capacitor to avoid abnormal power-off data loss and HDD damage.
·Support HDD storage, support 2TB.
·Support GPS / BD positioning, high sensitivity, fast positioning.
·3G/4G module optional, control driving situation of vehicles anytime.
Product description
Specification parameter
---------------------------------------------------------------------------------------------------------------------------------------------------
| Projec | Device parameters | Performance |
| SYSTEM | Mainprocessor | Hi3520DV200 |
| Operating system | Embedded Linux operating system | |
| Operatinglanguage | Chinese/English | |
| Operation interface | Graphic Ilmen interface suppor fo mouse operation | |
| Password safe | User password administrator password two levels of management | |
| Audio and video | Video format | PAL/NTSC |
| Compression standard | H.264 | |
| Image Resolution | 720P/D1/CIF | |
| Playback quality | CIF/D 1/720P | |
| Combination method | 8 Channel 720p/8 Channel 960H/6 Channel 720P+2 Channel 960H | |
| Decoding capability | 1Channel 720p real time | |
| Video quality | 1 to 6can beequipped with | |
| Screen display | Support 1,4 screen display | |
| Audio compression | G.726 | |
| Recording mode | Sound and video recording | |
| Video and playback | Video mode | Manualalarm |
| Video bit rate | Full frame 4096Mbps. 6 qulity optional | |
| Audio bit rate | 8KB/S | |
| Storage media | SD card storage | |
| Video search | Can be channel videc type search | |
| Local playback | Press the fle to play back | |
| Software upgrade | Upgrade mode | Manual upgrade,automatic upgrade, remote upgrade |
| Upgrade method | USB interface wireless network | |
| Interface | Audio and video input | 4 air head interface |
| Audio and video output | 1channel VGA video output,1 avatar header video output | |
| Alarm input | 4 digital inputs (two positive tiggers twa negative triggers) | |
| HDD | 2.5"SATA HDD Removable Case,Max to 2TB | |
| USB interface | 1USB 2.0 (support full mouse operation,USB delay self-test) | |
| lgnition input | 1channel ACC signal | |
| Serial port | 1LVTTLleve | |
| LED Indicator | PWR/RUN/SD/ALM | |
| SD card lock | 1 | |
| Debug serial port | 1 | |
| Extensions | GPS | Supports antena insertion/pullout/short circuit detection |
| WIFI | 80211b/g/n frequency 24GHz | |
| Other | Power input | DC:10V-36V |
| Power output | 5V 300mA | |
| Power consumption | Standtly 3mAMaximum power consumpion d 18W@12V1.5A@24V 0.75A | |
| Operating temperature | -2℃ - 70℃ | |
| Storage | 720P 24G/day/channel 960H 12-20G/day/channel |
